Protective Vest – Innovation in design, materials, and modularity
The protective vest is a crucial component of the personal protective equipment for law enforcement personnel. Its outer shell is designed to accommodate both soft and hard ballistics, while the integrated ballistic layers provide the actual protection. Advances in material technology and design have significantly improved the protection, comfort and mobility of modern protective vests.
This blog post will explore the functional significance, materials and technologies used, as well as customisation options. The aim is to provide a deeper understanding of the role and benefits of modern protective vests in the context of today’s safety requirements.
Functional significance of the protective vest
The primary function of a protective vest is to provide a stable shell that can accommodate both soft and hard ballistics. By absorbing and deflecting external forces, it protects the wearer from potentially life-threatening injuries. Depending on the model, protective vests are designed for various threat scenarios – from ballistic projectiles to stabbing and blunt-force weapons. The protective effect is achieved through the use of hard and soft ballistic elements. Protective vests can be categorised as follows:
- Soft ballistic vest: These vests protect against threats from small calibre handguns. The soft ballistic materials are flexible, such as aramid fibres, which conform to the body and provide a high level of comfort.
- Hard ballistic vest: These vests are designed for high-velocity threats, such as those from rifle ammunition. The hard ballistic layers are typically made of materials such as ceramics or high-strength polymers, which effectively absorb the kinetic energy of projectiles.
- Soft ballistic/stabbing vests: This type of vest protects against both ballistic threats and stabbing attacks. The stab protection is provided by special fabric structures made of high-strength materials that dissipate the impact force and prevent penetration. Some models also incorporate chainmail, which provides a barrier that is particularly effective against sharp blades.
Additional integrated components, such as pouches for ammunition or communication devices, can be added to extend the functionality of the vest.
Materials and technological advances
Modern protective vests are made from specially developed materials that provide high strength and effective shock absorption. Key materials include
- High density polyethylene (HDPE): This thermoplastic polymer is known for its high tensile strength and low density. It offers good ballistic resistance and helps to reduce the weight of the vest, improving comfort.
- Polyamide (Nylon) and ultra high molecular weight polyethylene (UHMWPE): These materials are known for their high tensile strength and effective absorption of kinetic energy. UHMWPE is particularly suitable for protective vests due to its high strength at low weight and its resistance to abrasion and chemicals, making it a preferred material as it provides protection without severely restricting mobility.
Soft ballistic layers consist of several layers of flexible fibres that absorb and dissipate the energy of projectiles. Hard ballistic protection includes additional layers of materials such as ceramics, steel or polyethylene, which provide increased resistance to high velocity projectiles. However, they are heavier and less flexible. Hard ballistic panels can be used in combination with soft ballistic layers or independently in panel carriers, especially for military or tactical applications.
Additional technological features in modern protective vests, such as the MOLLE (Modular Lightweight Load-carrying Equipment) system, laser-cut designs and ventilated mesh panels, also contribute to improved comfort and functionality.

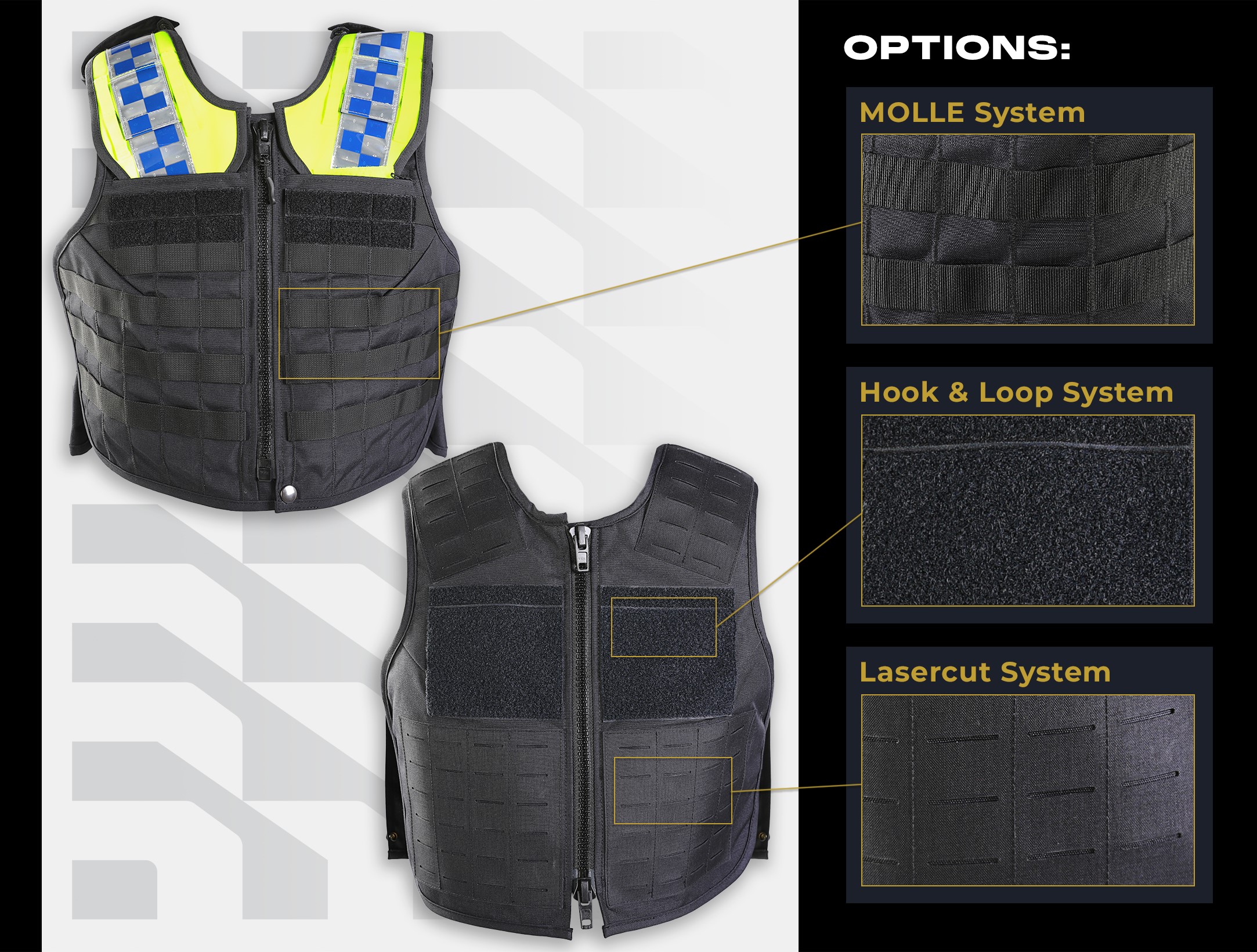

Upgrade options: Systems and accessories
Modern protective vests offer a number of customisation and upgrade options, which are particularly important for law enforcement agencies, who often need to carry additional equipment such as handcuffs, radios or magazine pouches. Some of the most common attachment systems include MOLLE, hook-and-loop and laser-cut designs. Each of these systems has specific advantages and disadvantages, which can be selected depending on the operating conditions.
MOLLE (Modular Lightweight Load-carrying Equipment): The Molle system consists of horizontal loops attached to the outside of the protective vest, enabling flexible attachment of pouches or holsters. The advantage of this system is its versatility, allowing equipment such as handcuffs, radios or magazine pouches to be attached to different parts of the vest. Larger and heavier items can also be securely attached as the MOLLE loops are robust and durable. However, this system can increase the weight of the vest due to additional seams and loops, and it can take longer to attach equipment, which may be less practical in stressful situations.
Hook and loop fastening system: This is another option for upgrading the protective vest. Hook and loop fasteners are used to secure the equipment, allowing for quick and easy adjustment. This is particularly useful when the wearer needs to quickly change or add equipment during an operation. The hook and loop system does not add significant weight to the vest and provides high mobility. However, it is not as durable as the MOLLE system, especially for heavier items. Over time, hook-and-loop fasteners can lose their grip, reducing their long-term reliability. Additionally, opening the fasteners may produce noise, which could be problematic in situations requiring quiet operation.
Laser-cut design: In a laser-cut design, precise slits are made directly into the material of the protective vest, which serve as attachment points for equipment. The benefit of this design is weight reduction as less material is used compared to traditional MOLLE or hook and loop systems. This keeps the vest lighter while maintaining a robust attachment structure. It also results in a more compact vest that improves the wearer’s mobility. However, this design can make it more difficult to fit accessories, as they often require special adapters or pouches tailored to the cuts.
In scenarios where specific equipment such as handcuffs, radios or flashlights are required, the various attachment systems (such as MOLLE, hook-and-loop and laser-cut designs) offer specific advantages.
In addition to the attachment of equipment, modern protective vests can be upgraded with plate carriers to increase the level of protection. These ballistic plates, made from high strength materials such as ceramic or polyethylene, provide enhanced protection against ballistic threats. The ability to choose and adjust different plate types makes the protective vest an effective and flexible protection system for law enforcement and military applications.
Target groups and applications
Protective vests are designed for a range of applications and target groups, each with specific requirements for body protection:
- Law Enforcement: Police forces rely on protective vests that offer protection against ballistic threats while providing additional functionality. In urban environments, vests with reflective elements or fluorescent colours are common for quick identification. Special Forces, on the other hand, use vests with higher ballistic protection, often with expanded pouch configurations for tactical equipment such as ammunition, communication devices or first aid supplies. These vests can also be modularly adapted to maximise flexibility during operations.
- Military Personnel: Soldiers use advanced protective vests tailored to their specific mission. These vests have to provide maximum protection against ballistic threats while allowing high mobility. Particularly important are vests that allow the integration of additional equipment, such as pouches for ammunition, communication devices or emergency medical supplies. The modular design of military vests allows the equipment to be quickly adapted and expanded to meet operational requirements, whether in urban environments or on the battlefield.
- Security Services: Security personnel working in a variety of environments – from private security to armed guarding in dangerous situations – require protective solutions that offer both ballistic and stab protection. These vests need to meet the requirements of their specific environment, whether it is firearm protection or protection against physical attacks such as stabbings. Again, modular construction is often beneficial for the flexible addition of additional features.
- Civilians: In insecure or conflict zones, journalists, humanitarian workers and security personnel often wear lighter versions of body armour. These vests provide basic protection against threats such as firearms or stabbing, but are less restrictive of movement and offer a degree of discretion. In many cases, these vests are designed to be inconspicuous so as not to make the wearer a target.
Summary: The protective vest as an advanced protection system
The continuous development of protective vests has made them an indispensable part of modern protective equipment. Their modularity, combined with the use of advanced materials and technologies, allows for flexible adaptation of protection levels to different threat scenarios. This is achieved through modular designs, such as the MOLLE system, and the choice of materials, such as ultra-high molecular weight polyethylene, aramid fibres and ceramics, which offer both protection and flexibility. Today’s protective vests are not only effective tools for physical protection, but are also ergonomically designed to maximise wearer comfort and mobility. The integration of ventilated mesh panels and modern manufacturing techniques, such as laser-cut designs, further enhance air circulation and minimise the weight of the vest.
These developments underline the importance of interdisciplinary research approaches in the fields of materials science, ergonomics and protective technology. The combination of these disciplines has resulted in protective vests that not only provide protection against immediate threats, but also reduce the physical strain on the wearer and enable use in demanding, dynamic environments. These adaptations ensure that today’s protective vests meet the needs of a wide range of users, from security forces and military personnel to civilians in high-risk areas.
Choosing the appropriate protective vest should therefore be based on a thorough analysis of the specific operational conditions. Factors such as the nature of the threat, the operational environment and ergonomic requirements must be considered to ensure an effective and comfortable protective solution. A solid understanding of the different systems, materials and target groups underlines the importance of making the best use of modern protective technologies to ensure safety in an ever-changing world.
